Welding fittings

Application: The fittings are used fot transport of fluids and gases up to the allowed pressure and temperature (non-potable water, compressed air, natural gas, propane, butane, propane butane, non-abrasive and non-aggressive fluids)
Connection type: elbow, extension and T-shaped fittings for welding by blunt weld, socket fittings for welding with blunt weld in combination with thread
Manufactured according to the standards: socket fittings - EN 10241, elbow, extension and T-shaped fittings - EN 10253-1
Material: S235 steel
Surface finish: black with a thin layer of preservative oil
Product certificates: B-30-00322-06, B-30-00059-07, B-30-00059-07, B-30-00322-06
Operating parameters: maximum operating pressure 2.0 MPa at -20 °C to + 120 °C
Connection size: elbow, extension and T-shaped fittings - DN 15 to DN 250, socket fittings - ¼ "to 4"

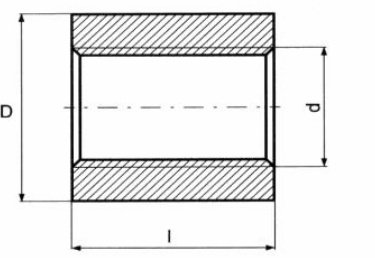

Socket weld fitting FOC270

Size	d	D	l
1/4	8	18,5	25
3/8	10	21,3	26
1/2	15	26,6	34
3/4	20	31,8	36
1	25	39,5	43
1 1/4	32	48,3	48
1 1/2	40	54,5	48
2	50	66,2	56
2 1/2	65	82	65
3	80	95	71
4	100	121,4	83

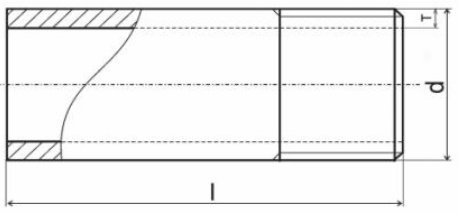

Socket weld fitting FOC550

Size	l	d	T
3/8x100	100	16,7	2,3
1/2x100	100	21,0	2,6
1/2x150	150	21,0	2,6
1/2x200	200	21,0	2,6
3/4x100	100	26,5	2,6
3/4x150	150	26,5	2,6
3/4x200	200	26,5	2,6
1x100	100	33,8	3,2
1x150	150	33,8	3,2
1x200	200	33,8	3,2
1 1/4x100	100	42,0	3,2
1 1/4x150	150	42,0	3,2
1 1/4x200	200	42,0	3,2
1 1/2x100	100	47,9	3,2
1 1/2x150	150	47,9	3,2
1 1/2x200	200	47,9	3,2
2x100	100	59,7	3,6
2x150	150	59,7	3,6
2x200	200	59,7	3,6
2 1/2x100	100	75,3	3,6
2 1/2x150	150	75,3	3,6
2 1/2x200	200	75,3	3,6
3x100	100	88,0	4,0
3x150	150	88,0	4,0
3x200	200	88,0	4,0
4x100	100	113,1	4,5
4x150	150	113,1	4,5
4x200	200	113,1	4,5

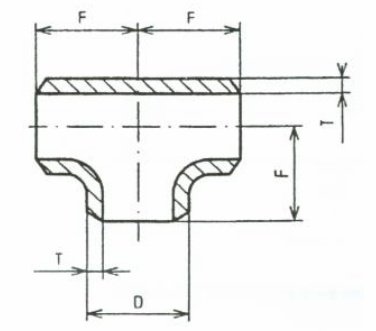

T-shaped weld fitting FOC130

Size	DN	D	T	F
21,3x2,0	15	21,3	2,0	25,0
26,9x2,3	20	26,9	2,3	29,0
33,7x2,6	25	33,7	2,6	38,0
42,4x2,6	32	42,4	2,6	48,0
48,3x2,6	40	48,3	2,6	57,0
57,0x2,9	50	57	2,9	60,0
60,3x2,9	50	60,3	2,9	64,0
76,1x2,9	65	76,1	2,9	76,0
88,9x3,2	80	88,9	3,2	86,0
108,0x3,6	100	108,0	3,6	100,0
114,3x3,6	100	114,3	3,6	105,0
133,0x4,0	125	133,0	4,0	120,0
139,7x4,0	125	139,7	4,0	124,0
159,0x4,0	150	159,0	4,5	137,0

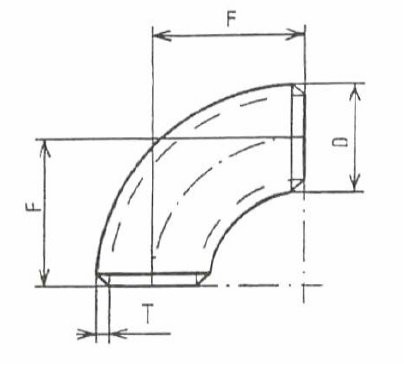

Elbow weld fitting FOC090

Size	D	T	F
21,3	21,3	2,0	29,0
26,9	26,9	2,3	29,0
31,8	31,8	2,6	35,0
33,7	33,7	2,6	38,0
38,0	38,0	2,6	45,0
42,0	42,4	2,6	48,0
44,5	44,5	2,6	51,0
48,3	48,3	2,6	57,0
51,0	51,0	2,6	68,5
57,0	57,0	2,9	72,0
60,3	60,3	2,9	76,0
70,0	70,0	2,9	92,0
76,0	76,1	2,9	95,0
88,9	88,9	3,2	114,0
101,6	101,6	3,6	133,0
108,0	108,0	3,6	142,5
114,3	114,3	3,6	152,0
133,0	133,0	4,0	181,0
139,7	139,7	4,0	190,0
159,0	159,0	4,5	216,0
219,1	219,1	6,3	305,0

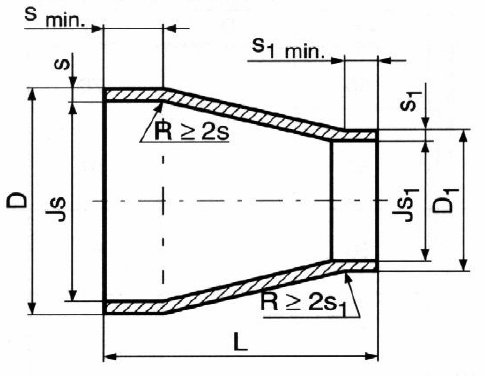

Weld reduction FOC241

Size	D x s / D1 x s1
15x10	21,3x2,0/17,2x1,8
20x15	26,9x2,3/21,3x2,0
25x15	33,7x2,6/21,3x2,0
25x20	33,7x2,6/26,9x2,3
32x15	42,4x2,6/21,3x2,0
32x20	42,4x2,6/26,9x2,0
32x25	42,4x2,6/33,7x2,6
40x15	48,3x2,6/21,3x2,0
40x20	48,3x2,6/26,9x2,3
40x25	48,3x2,6/33,7x2,6
40x32	48,3x2,6/42,4x2,6
50x20	57x2,6/26,9x2,3
50x20	60,3x2,9/26,9x2,3
50x25	57,0x2,9/33,7x2,6
50x32	60,3x2,9/33,7x2,6
50x32	57x2,9/42,4x2,6
50x40	57x2,9/48,3x2,6
50x40	60,3x2,9/48,3x2,6
65x25	76,1x2,9/33,7x2,6
65x32	76,1x2,9/42,4x2,6
65x40	76,1x2,9/48,3x2,6
65x50	76,1x2,9/57x2,9
65x50	76,1x2,9/60,3x2,9
80x32	88,9x3,2/42,4x2,6
80x40	88,9x3,2/48,3x2,6
80x50	88,9x3,2/57x2,9
80x50	88,9x3,2x60,3x2,9
80x65	88,9x3,2/76,1x2,9
100x50	108x3,6/57x2,9
100x50	108x3,6/60,3x2,9
100x50	114,3x3,3/57x2,6
100x50	114,3x3,6/60,3x2,9
100x65	108x3,6/76,1x2,9
