Application:

Used in hydraulic systems for connecting the pressure gauge to the system, the valve allows to close the pressure supply, thus extending the life of the pressure gauges.

Assembly:

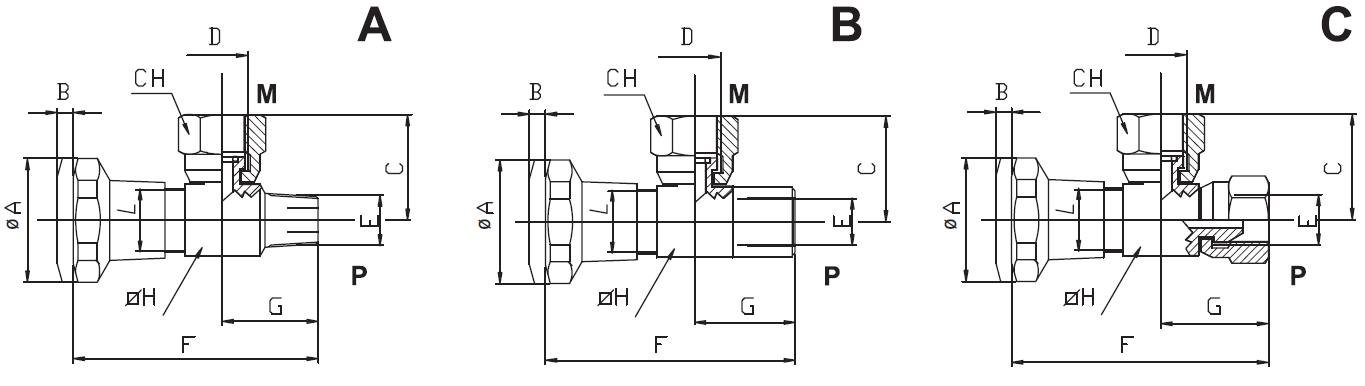

Connect the pressure gauge to M and the measured point to P. For the connection of pressure gauge with ¼ conical thread ask for a special brass ring.

Function:

Screw the controller to isolate the pressure gauge from the pressure point. Unscrew the controller to connect the pressure gauge to the pressure point.

Optional:

Metric inputs - SAE connection - side connections DIN2353 - Viton seal

Characteristics:

Pressure impact reduction - oil-resistant plastic controller - galvanized body - no leakage
