Application:

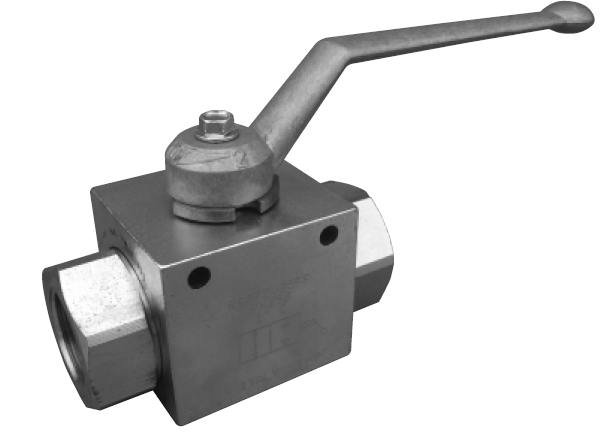

The ball valve is used to close/open the flow. It can also be opened/closed at maximal pressure and has no leaks.

Assembly:

The flow rate and the appliance are connected to the valve outputs.

Function:

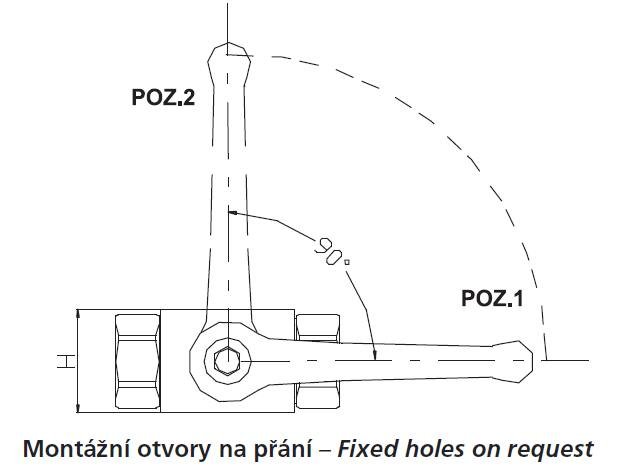

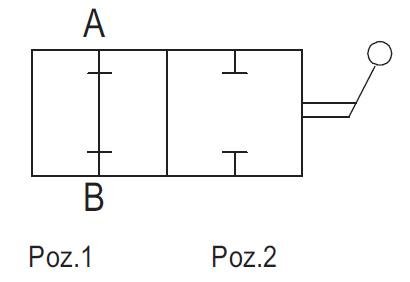

The flow passes through the valve with the lever in position 1. The flow is stopped by the lever in position 2.

Optional:

black - chromed - galvanized (green) - mounting holes - special lever - metric inputs - external threads - DIN2353 connection for hose fittings

Characteristics:

Steel body - galvanized - without leakage – full pressure manipulation allowed

Order code: example of BKH2 G1/2 "internal thread / example of tube (hose) BHK2 12L (M18x1,5)
