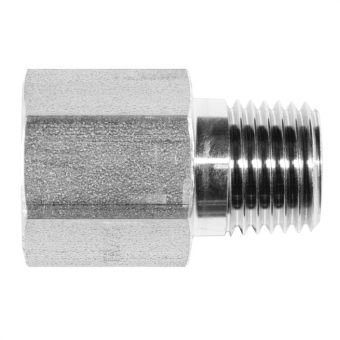

Typ AD A 50 NPT-R
- materiál nerezová ocel, jakost 1.4571
- jmenovitý tlak 160 - 400 bar
- CAD knihovna
Hledaný výraz musí mít více jak 2 znaky.
| TYP | OBJEDNACÍ ČÍSLO | RNPT | R2 | bar | SW | L | i1 | i2 | e |
| AD A 50-1/8 NPT-1/8 | TAD.5125.042 | 1/8 | 1/8 | 400 | 14 | 21.0 | 6.7 | 9.5 | 6.0 |
| AD A 50-1/8 NPT-1/4 | TAD.5135.044 | 1/8 | 1/4 | 400 | 14 | 18.5 | 6.7 | 12.5 | 8.4 |
| AD A 50-1/4 NPT-1/4 | TAD.5125.104 | 1/4 | 1/4 | 400 | 17 | 29.0 | 10.2 | 12.5 | 8.0 |
| AD A 50-1/4 NPT-3/8 | TAD.5135.106 | 1/4 | 3/8 | 400 | 17 | 20.5 | 10.2 | 12.5 | 10.8 |
| AD A 50-1/4 NPT-1/2 | TAD.5135.108 | 1/4 | 1/2 | 400 | 22 | 25.5 | 10.2 | 17.5 | 10.8 |
| AD A 50-3/8 NPT-3/8 | TAD.5125.166 | 3/8 | 3/8 | 400 | 22 | 29.0 | 10.3 | 12.5 | 10.5 |
| AD A 50-1/2 NPT-1/2 | TAD.5125.228 | 1/2 | 1/2 | 400 | 27 | 38.0 | 13.5 | 17.5 | 13.0 |
| AD A 50-1/2 NPT-3/4 | TAD.5135.232 | 1/2 | 3/4 | 160 | 27 | 29.0 | 13.5 | 19.0 | 17.7 |
| AD A 50-3/4 NPT-3/4 | TAD.5125.292 | 3/4 | 3/4 | 160 | 32 | 43.0 | 13.8 | 19.0 | 21.0 |
| AD A 50-1 NPT-1 | TAD.5125.414 | 1 | 1 | 160 | 36 | 45.0 | 17.4 | 21.0 | 26.0 |
