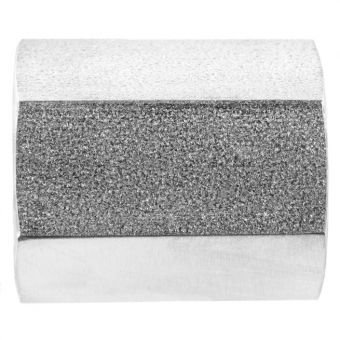

Typ AD HRC 50
- materiál nerezová ocel, jakost 1.4571
- jmenovitý tlak 200 - 400 bar
- CAD knihovna
Hledaný výraz musí mít více jak 2 znaky.

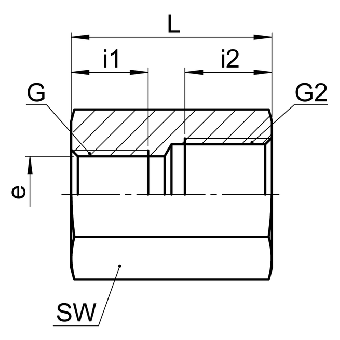

| TYP | OBJEDNACÍ ČÍSLO | G | G2 | bar | SW | L | i1 | i2 | e |
| AD HRC 50-1/8-1/4 | TAD.5100.044 | 1/8 | 1/4 | 400 | 22 | 25.0 | 8.0 | 9.0 | 8.6 |
| AD HRC 50-1/8-3/8 | TAD.5100.046 | 1/8 | 3/8 | 400 | 22 | 30.0 | 8.0 | 9.5 | 8.6 |
| AD HRC 50-1/8-1/2 | TAD.5100.048 | 1/8 | 1/2 | 400 | 27 | 41.0 | 8.0 | 11.5 | 8.6 |
| AD HRC 50-1/4-3/8 | TAD.5100.106 | 1/4 | 3/8 | 400 | 22 | 29.0 | 9.0 | 9.5 | 11.4 |
| AD HRC 50-1/4-1/2 | TAD.5100.108 | 1/4 | 1/2 | 400 | 27 | 40.0 | 9.0 | 11.5 | 11.4 |
| AD HRC 50-3/8-1/2 | TAD.5100.168 | 3/8 | 1/2 | 400 | 27 | 38.0 | 9.5 | 11.5 | 15.0 |
| AD HRC 50-1/2-3/4 | TAD.5100.232 | 1/2 | 3/4 | 200 | 32 | 41.0 | 11.5 | 14.0 | 18.6 |
| AD HRC 50-1/2-1 | TAD.5100.236 | 1/2 | 1 | 200 | 46 | 51.0 | 11.5 | 17.0 | 18.6 |
