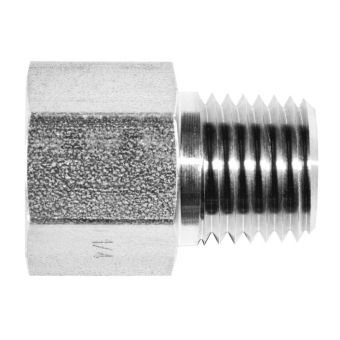

Typ AD A 50 G-NPT
- materiál nerezová ocel, jakost 1.4571
- jmenovitý tlak 200 - 400 bar
- CAD knihovna
Hledaný výraz musí mít více jak 2 znaky.

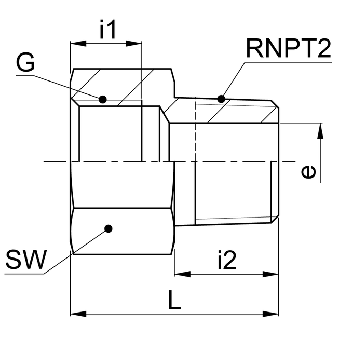

| Typ | OBJEDNACÍ ČÍSLO | G | RNPT2 | bar | SW | L | i1 | i2 | e |
| AD A 50-1/8-1/8 NPT | TAD.5124.042 | 1/8 | 1/8 | 400 | 14 | 21.0 | 8.0 | 9.5 | 6.0 |
| AD A 50-1/8-1/4 NPT | TAD.5134.044 | 1/8 | 1/4 | 400 | 14 | 18.5 | 8.0 | 12.5 | 8.7 |
| AD A 50-1/8-3/8 NPT | TAD.5134.046 | 1/8 | 3/8 | 400 | 17 | 20.5 | 8.0 | 12.5 | 8.7 |
| AD A 50-1/8-1/2 NPT | TAD.5134.048 | 1/8 | 1/2 | 400 | 22 | 25.5 | 8.0 | 17.5 | 8.7 |
| AD A 50-1/4-1/8 NPT | TAD.5124.102 | 1/4 | 1/8 | 400 | 17 | 23.0 | 9.0 | 9.5 | 6.0 |
| AD A 50-1/4-1/4 NPT | TAD.5124.104 | 1/4 | 1/4 | 400 | 17 | 26.0 | 9.0 | 12.5 | 8.0 |
| AD A 50-1/4-3/8 NPT | TAD.5134.106 | 1/4 | 3/8 | 400 | 17 | 20.5 | 9.0 | 12.5 | 11.6 |
| AD A 50-1/4-1/2 NPT | TAD.5134.108 | 1/4 | 1/2 | 400 | 22 | 25.5 | 9.0 | 17.5 | 11.6 |
| AD A 50-1/4-3/4 NPT | TAD.5134.110 | 1/4 | 3/4 | 400 | 27 | 29.0 | 9.0 | 19.0 | 11.6 |
| AD A 50-3/8-1/4 NPT | TAD.5124.164 | 3/8 | 1/4 | 400 | 22 | 28.0 | 9.5 | 12.5 | 8.0 |
| AD A 50-3/8-3/8 NPT | TAD.5124.166 | 3/8 | 3/8 | 400 | 22 | 27.0 | 9.5 | 12.5 | 10.5 |
| AD A 50-3/8-1/2 NPT | TAD.5134.168 | 3/8 | 1/2 | 400 | 22 | 25.5 | 9.5 | 17.5 | 15.2 |
| AD A 50-1/2-1/4 NPT | TAD.5124.224 | 1/2 | 1/4 | 400 | 27 | 31.0 | 11.5 | 12.5 | 8.0 |
| AD A 50-1/2-3/8 NPT | TAD.5124.226 | 1/2 | 3/8 | 400 | 27 | 30.0 | 11.5 | 12.5 | 10.5 |
| AD A 50-1/2-1/2 NPT | TAD.5124.228 | 1/2 | 1/2 | 400 | 27 | 35.0 | 11.5 | 17.5 | 13.0 |
| AD A 50-1/2-3/4 NPT | TAD.5134.232 | 1/2 | 3/4 | 400 | 27 | 29.0 | 11.5 | 19.0 | 19.0 |
| AD A 50-3/4-1/2 NPT | TAD.5124.288 | 3/4 | 1/2 | 200 | 32 | 39.0 | 14.0 | 17.5 | 13.0 |
| AD A 50-3/4-3/4 NPT | TAD.5124.292 | 3/4 | 3/4 | 200 | 32 | 40.0 | 14.0 | 19.0 | 21.0 |
| AD A 50-3/4-1 NPT | TAD.5134.296 | 3/4 | 1 | 200 | 36 | 31.0 | 14.0 | 21.0 | 24.5 |
| AD A 50-1-3/4 NPT | TAD.5124.412 | 1 | 3/4 | 200 | 41 | 45.0 | 17.0 | 19.0 | 21.0 |
| AD A 50-1-1 NPT | TAD.5124.414 | 1 | 1 | 200 | 41 | 45.0 | 17.0 | 21.0 | 26.0 |
