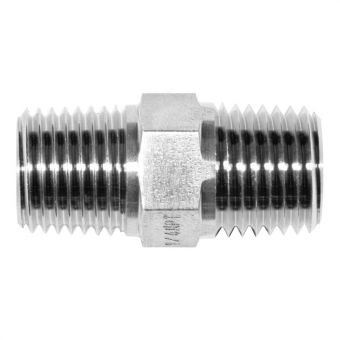

Typ AD HN 50 R-NPT
- materiál nerezová ocel, jakost 1.4571
- jmenovitý tlak 200 - 400 bar
- CAD knihovna

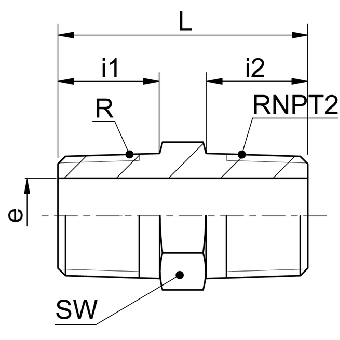

Typ AD HN 50 R-NPT
TYP | OBJEDNACÍ ČÍSLO | R | RNPT2 | bar | SW | L | i1 | i2 | e |
AD HN 50-1/8-1/8 NPT | TAD.5114.042 | 1/8 | 1/8 | 400 | 12 | 25.0 | 9.5 | 9.5 | 6.0 |
AD HN 50-1/4-1/4 NPT | TAD.5114.104 | 1/4 | 1/4 | 400 | 14 | 31.0 | 12.5 | 12.5 | 8.0 |
AD HN 50-3/8-3/8 NPT | TAD.5114.166 | 3/8 | 3/8 | 330 | 17 | 33.0 | 12.5 | 12.5 | 10.5 |
AD HN 50-1/2-1/2 NPT | TAD.5114.228 | 1/2 | 1/2 | 330 | 22 | 43.0 | 17.5 | 17.5 | 13.0 |
AD HN 50-3/4-3/4 NPT | TAD.5114.292 | 3/4 | 3/4 | 200 | 27 | 48.0 | 19.0 | 19.0 | 21.0 |
AD HN 50-1-1 NPT | TAD.5114.414 | 1 | 1 | 200 | 36 | 52.0 | 21.0 | 21.0 | 26.0 |
