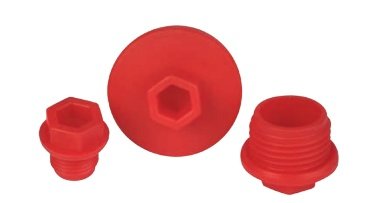

Material:
Elastomer, soft polyurethane.
Design:
Red
Notice:
Tightness 2-3 bar. Prevent paint penetration.

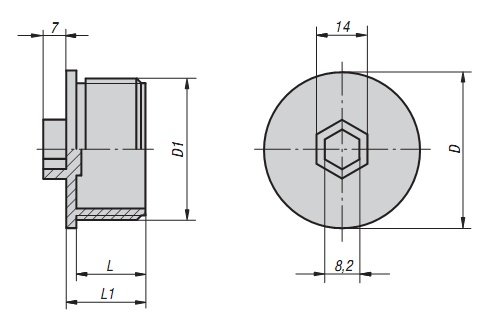

D | D1 | L | L1 | Order number |
16,2 | G 1/8 | 8 | 10 | 284030 |
18,1 | G 1/4 | 9,9 | 12,5 | 284031 |
21 | G 3/8 | 9 | 11 | 284032 |
25,2 | G 1/2 | 11 | 14 | 284033 |
31,3 | G 3/4 | 11,5 | 14 | 284034 |
36 | G 1 | 12 | 14 | 284035 |

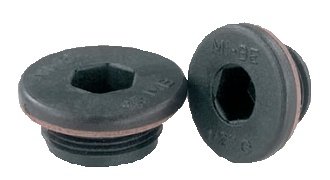

Plastic plugs K0450


Material:
Thermoplastic, polyamide 66.
Design:
Black, flat without asbestos
Notice:
Temperature resistance for oil up to 100 °C, for water up to 70 °C.
On demand:
O-ring or material with higher strength and temperature resistance (150 °C)

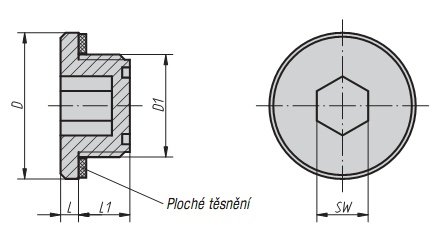

D | D1 | L | L1 | SW | Order number |
18,2 | G 1/4 | 2,5 | 8 | 6 | 284036 |
22,5 | G 3/8 | 3,5 | 10,5 | 8 | 284037 |
28,5 | G 1/2 | 3,5 | 10,5 | 10 | 284038 |
35 | G 3/4 | 4 | 10,5 | 12 | 284039 |
20 | M14x1,5 | 2,5 | 8 | 6 | 284040 |
22,5 | M16x1,5 | 3,5 | 11 | 8 | 284041 |
26 | M18x1,5 | 3 | 10 | 10 | 284042 |
28,5 | M20x1,5 | 3 | 11 | 10 | 284043 |
28,5 | M22x1,5 | 3,5 | 10,5 | 10 | 284044 |
35 | M26x1,5 | 3 | 12 | 12 | 284045 |
